4x1G and 24 SFP+ Managed Switch NETGEAR M5300-28GF3 (GSM7328FS) giá rẻ nhất thị trường

* Sản phẩm chính hãng,mới 100%.

* Miễn phí giao hàng và bảo hành tại nơi sử dụng trong nội thành Hà Nội, TP HCM. Với các khu vực khác, tùy từng sản phẩm mà chúng tôi có hỗ trợ miễn phí hoặc không.

* Giá bán trên website là giá chưa bao gồm thuế giá trị gia tăng (VAT).

* Thông tin sản phẩm và hình ảnh được cập nhật theo thông tin của nhà sản xuất cung cấp.

Thông tin sản phẩm

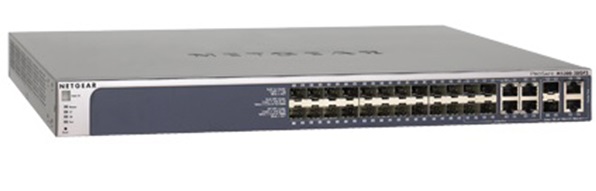

4x1G and 24 SFP+ Managed Switch NETGEAR M5300-28GF3 (GSM7328FS)

4x1G and 24 SFP+ Managed Switch NETGEAR M5300-28GF3 (GSM7328FS)

- M5300-28GF3 (GSM7328FSv2) ProSAFE 24 SFP + 4 Gigabit Full L3 Managed Stackable Switch:

- Management: Web GUI; HTTP/HTTPs; CLI; Telnet; SSH, SNMP, RMON, MIBs, RSPAN

- CPU/RAM/FLASH: 800Mhz /512M RAM /128M Flash

- 4 x 10/100/1G RJ45 (shared) + 24 x 100/1G SFP + 2 x 10G combo RJ45/SFP+

- Additional 10 Gigabit I/O bays: 2 x 10G Module

- Fabric/Throughput: 144 Gbps/107.1 Mpps

- Stacking: Up to 8 switches 384 ports.

- Packet buffer/ACLs/IGMP/Jumbo frame: 16 Mb/100 ACLs 16,384 rules/2K IPv4 + 2K IPv6/up to 12K packet size

- MAC/ARP_NDP/VLANs/DHCP server: 32K/6K ARP_NDP/4K/ 16 pools 1,024 max leases

- LAGs: 64 LAGs with up to 8 ports per group

- Layer 2+/3 Package: Port-based, Subnet, VLANs, Loopback; RIP, OSPF, OSPFv3, VRRP, ECMP, Proxy ARP, Multinetting; PIM-SM, PIM-DM

- Table size: 12,256 Routes; Static Routes: 512 IPv4 512 IPv6; RIP: 512, OSPF: 12,256

- Modular PSU (hot-swap when RPS): 1 (APS135W) + 1 (RPS)

- Form Factor: Rack 1U

Xem thêm nội dung

Thông số kỹ thuật

Model	M5300-28GF3 (GSM7328FSv2)
10/100/1000 Base-T RJ45 ports	4 (shared)
100/1000X Fiber SFP ports	24
100/1000/10GBase-T RJ45 ports	2 built-in
1000/ 10GBase-X Fiber SFP+ ports	2 (shared) built-in
Additional 10 Gigabit I/O bays	2 modules
Modular PSU (hot-swap when RPS)	1 (APS135W)
RPS connector	1 (RPS)
Management console	1 x RS232 DB9, 1 x Mini-USB (selectable)
Storage (image, config, log files)	1 x USB
IPv4/ IPv6 ACL and QoS	L2, L3, L4, timebased, ingress, egress, 1 Kbps
IPv4/IPv6 Multicast filtering	IGMP amd MLD Snooping, Querier mode, MVR
Auto-VoIP Auto-iSCSI	Yes
VLANs	Static, Dynamic, Voice, MAC, Subnet, Protocolbased, QinQ, Private VLANs
Convergence	LLDP-MED, RADIUS, 802.1X, PoE time
IPv4 Static Routing	Yes (Portbased, Subnet, VLANs, Loopback)
IPv6 Static Routing	Yes
IPv4 Dynamic Routing	RIP, OSPF, VRRP, ECMP, Proxy ARP, Multinetting
IPv6 Dynamic Routing	OSPFv3 Configured 6to4 Automatic 6to4
IPv4/ IPv6 Multicast Routing	Static routes, PIM-SM, PIMDM
Packet buffer	16 Mb
CPU	800Mhz 512M RAM 128M Flash
ACLs	100 ACLs 16,384 rules ingress, egress
MAC ARP/NDP VLANs DHCP server	32K MAC 6K ARP/NDP VLANs: 4K DHCP: 16 pools 1,024 max leases
Number of Routes (IPv4/IPv6)	L3 route table size: 12,256
RIP/OSPF application route scaling	RIP: 512 OSPF: 12,256
Static Routes	512 IPv4 512 IPv6
Multicast IGMP Group membership	2K IPv4 2K IPv6
IP Multicast Forwarding Entries	1K IPv4 or 512 IPv4 256 IPv6
sFlow	32 samplers 52 pollers 8 receivers
