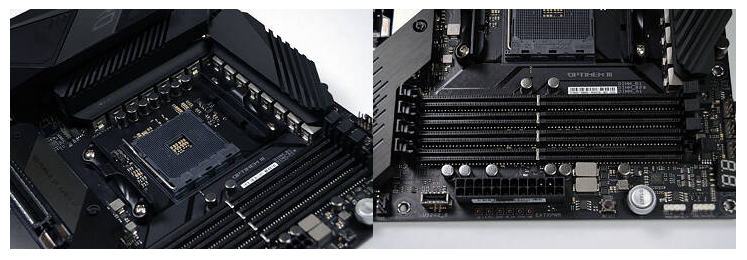

3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

2nd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.

3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8)

2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8)

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode)

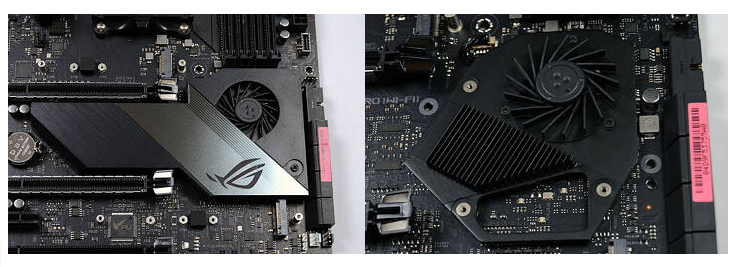

AMD X570 chipset 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1

3rd Gen AMD Ryzen™ Processors :  1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :  1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

AMD X570 chipset :  1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10

3rd Gen AMD RyzenTM Processors : 4 x USB 3.2 Gen 2 port(s)

2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s)

• 1 x USB 3.2 Gen 2 front panel connector port(s)
• 4 x USB 3.2 Gen 2 port(s)
• 6 x USB 3.2 Gen 1 port(s)
• 4 x USB 2.0 port(s)

• 1 x Optical S/PDIF out
• 1 x Clear CMOS button(s)
• 1 x Anti-surge 2.5G LAN (RJ45) port
• 1 x USB BIOS Flashback^® Button(s)
• 1 x ASUS Wi-Fi Module
• 5 x Gold-plated audio jacks
• 4 x USB 3.2 Gen 1 (up to 5Gbps) ports
• 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () Anti-surge LAN (RJ45) port

• 2 x Aura RGB Strip Headers
• 2 x Addressable Gen 2 header(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

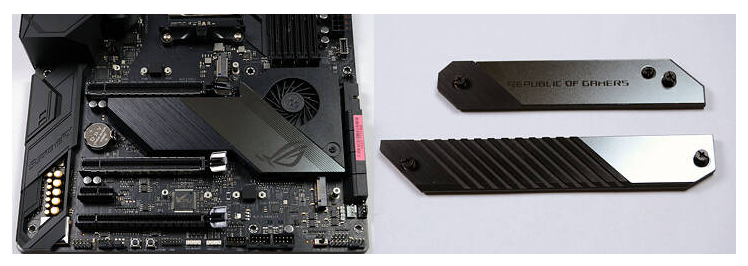

• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support

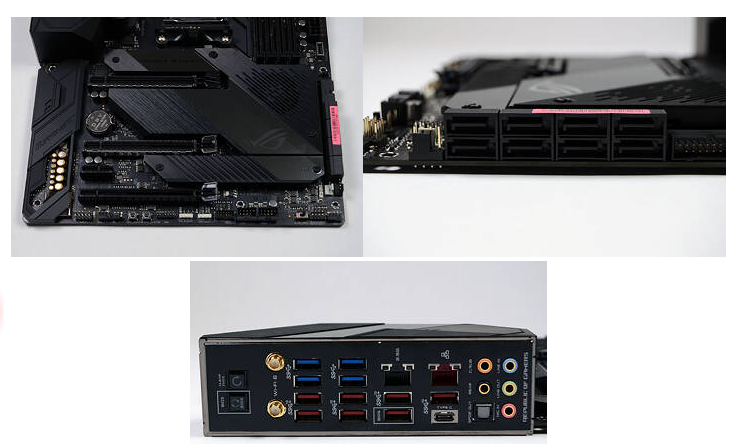

• 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x H_AMP fan connector
• 1 x W_PUMP+ connector
• 1 x 4-pin EATX 12 V Power connector
• 1 x 24-pin EATX Power connector(s)

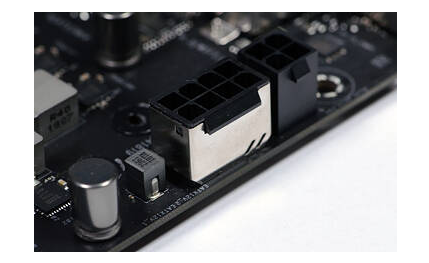

• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Slow Mode switch(es)
• 1 x Reset button(s)
• 1 x Node Connector(s)
• 1 x LN2 Mode jumper(s)
• 1 x Safe Boot button
• 1 x ReTry button
• 1 x System panel connector
• 1 x T_Sensor Connector
• 1 x W_IN header
• 1 x W_OUT header
• 1 x W_FLOW header
• 1 x Start button
• 1 x Speaker connector
• 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
• 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
